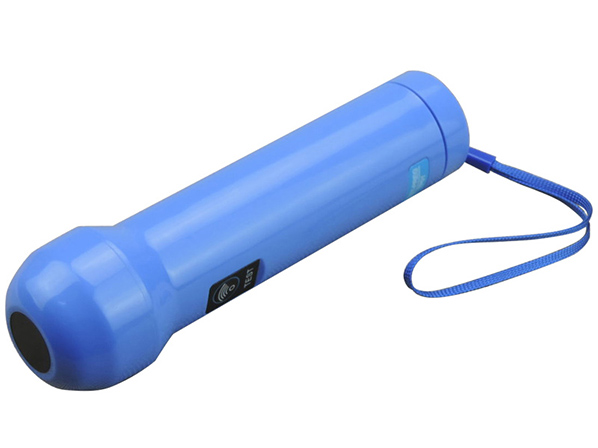

Sheep pregnancy ultrasound scanners tester

• Model: YL 2103
• Voltage: 4 *1.5V battery
• Power: <400mW
• Weight: 0.32kg
• Size: 180*50*50mm
• Application: Sheep goat pig pregnancy tester

Product Description

Sheep pregnancy ultrasound scanners tester
Sheep pregnancy ultrasound scanners tester

Sheep pregnancy ultrasound scanners tester is an instrument which can emit and receive ultrasound waves. When the emitted ultrasound waves travel into the body of the sow and the goat, the echo reflect to the receiver.
The uterus of sow and goat will be full of amniotic fluid during pregnancy, so Pregnancy Test Instrument distinguishes the receive echo response from the amniotic fluid, according to the different sounds made by Pregnancy Test Instrument to determine whether the sow and goat are pregnant or not.

Technical specifications

1. Battery: 4pcs (1.5V)
2. Rated power: ≤400mW
3. Dimensions: 180×50×50mm(L×W×H)

Main functions

Use sound and light of two states to feedback, applied to different environments.
Test Pregnancy Instrument is waterproof.

Using indicator
S/N  Prompt sound Indicator light Status
1 a short sound “tick” Flashing once Instrument normal fully charged
2 Intermittent “tick ... tick ...” sounds Intermittent flashing Good contact, not pregnant
3 Continuous “tick, tick ...” sounds Continuous flashing Pregnant

Technical Parameters

Model YL 2103
Size 180*50*50mm
Material Plastic shell
Voltage 4*1.5V
Power <400mW
Weight 0.32kg
