Poultry chicken water pressure regulator

Material ABS plastic

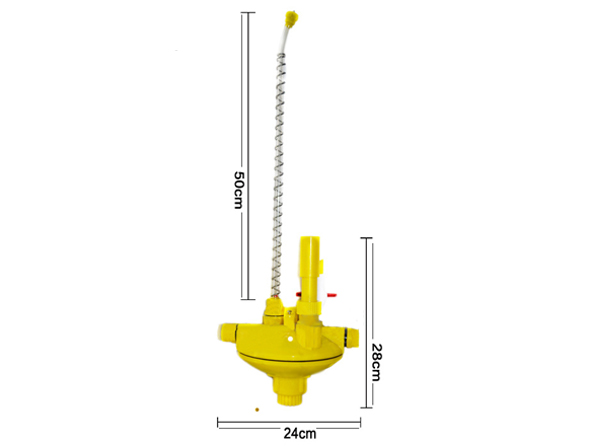

Size 28*24cm
Weight 1.05KG
Application poultry, chicken, duck drinking system
Suitable pipe 3/4 square pipe, round pipe, soft pipe, PVC pipe or PPR pipe
Type back-flushing water pressure regulator
model YL5587/YL0581
SHARE WITH:

Product Description

1.Poultry chicken water pressure regulator  is installed at the head or middle of drinking line.
2. Poultry chicken water pressure regulator  Use for regulate or adjust water pressure, to adjust the pressure data,avoid water-pressure of nipple too high hurting poultry while poultry are drinking.
3. The Poultry chicken water pressure regulator  could show the pressure data of every drinking line accurately, .Water pressure is displayed by the height of  red floating ball in the transparent standing pipe.
4. Adjustable pressure range:0-0.6Mpa(0-87PSI)
When Poultry chicken water pressure regulator  is 0.1Mpa,water flow rate at working state is 20kg/min;water flow rate at back flushing state is 35kg/min
Poultry chicken water pressure regulator
Poultry chicken water pressure regulator

Poultry chicken water pressure regulator  Working state:
Rotate the work&back-flushing knob clockwise, rotate the water pressure regulating knob. Water level in the standing pipe increases&reduces by 100mm,water flow from nipple drinker will increases&reduces by 8-10ml/min.
Back flushing state:
rotate the work&back-flushing knob counter-clock wise

Product Parameters

Model number YL0581 YL5587
Color yellow  orange
Material ABS Plastic
Usage reducing water pressure
Pipe size 25mm pvc pipe
Size 18*28cm 19.8*26cm
Application poultry drinking system
